PRODUCT PORTFOLIO

Fans and ventilation

Primary and auxiliary ventilation systems designed for permanent or temporary use in mines, tunnels and shafts

Focus on

Fans and ventilation

Using simulation and modelling software we are able to to accurately follow air paths and calculate the flows and pressures necessary to meet any particular situation in  accordance with the current regulations

Axial and
centrifugal fans

Motors and
controls

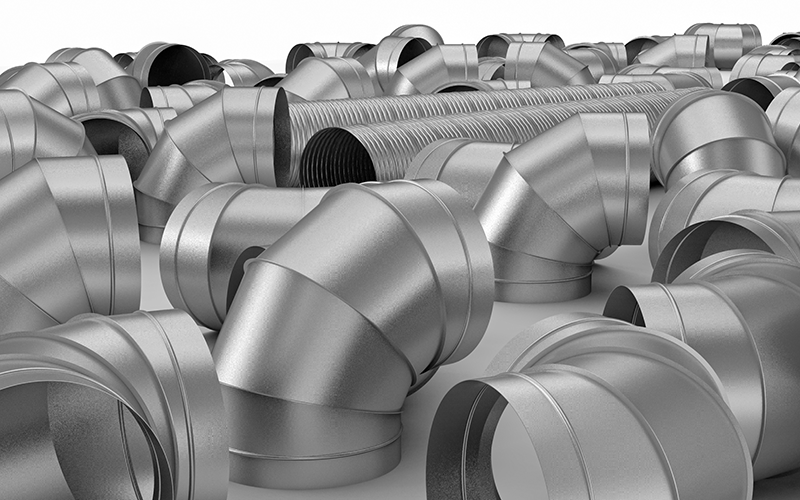

Ducting, hoses and fittings

Condition
monitoring

Axial fans - single stage

AX125 1250mm single stage jet fan

  • Max flow 18m3/s
  • Max pressure 450Pa
  • Running current 10A
  • Max Power 5.5kW

AX80 800mm single stage jet fan

  • Max flow 9m3/s
  • Max pressure 300Pa
  • Running current 7A
  • Max Power 4.0kW

AX63 630mm single stage jet fan

  • Max flow 4.5m3/s
  • Max pressure 250Pa
  • Running current 3A
  • Max Power 0.37kW

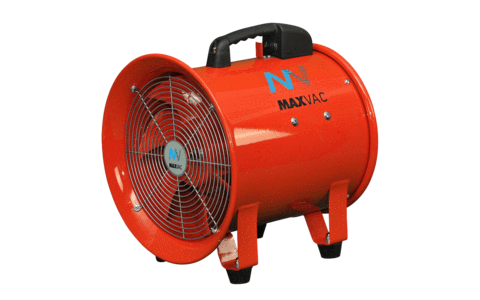

AX30 300mm single stage jet fan

  • Max flow 1m3/s
  • Max pressure 343Pa
  • Running current 1.5A
  • Max Power 0.34kW

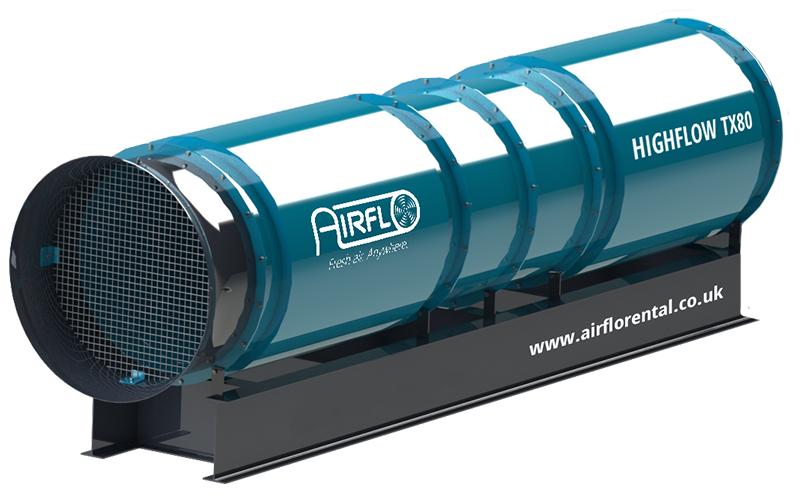

Axial fans - twin stage

TX100 1000mm 2-stage contra fan

  • Max flow 31.7m3/s
  • Max pressure 2000Pa
  • Running current 2x32AA
  • Max Power 2x17kW

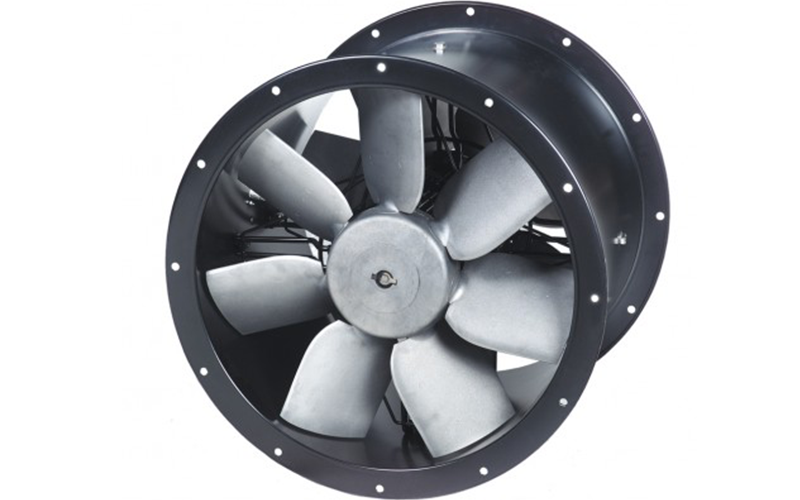

TX63 630mm 2-stage contra fan

  • Max flow 5m3/s
  • Max pressure 675Pa
  • Running current 7.5A
  • Max Power 4kW

BigBlue Industrial air movers

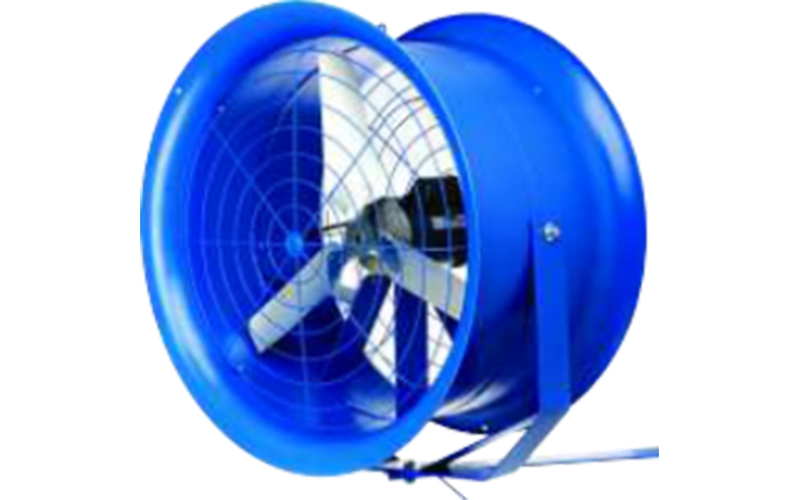

BB30 760mm high velocity air mover

  • Max flow 5.6m3/s
  • Max throw 50m
  • Running current 4A
  • Max Power 0.75kW

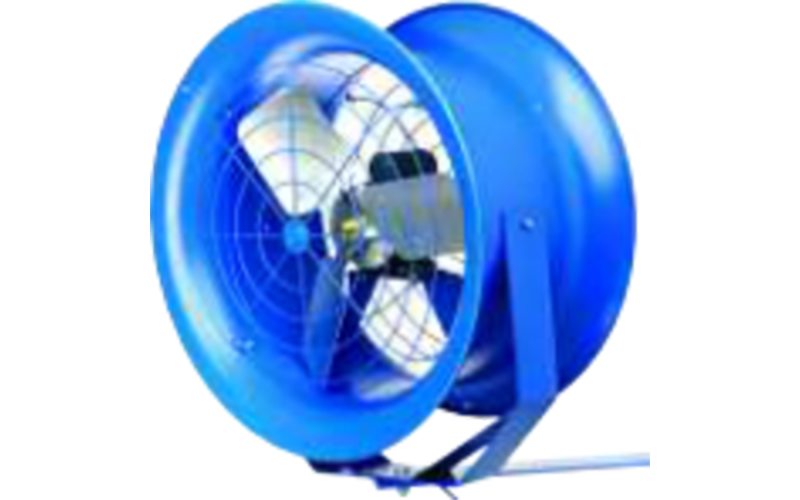

BB22 560mm high velocity air mover

  • Max flow 2.6m3/s
  • Max throw 36m
  • Running current 2A
  • Max Power 0.37kW

BB18 450mm high velocity air mover

  • Max flow 1.8m3/s
  • Max throw 24m
  • Running current 2A
  • Max Power 0.37kW

BB14 350mm high velocity air mover

  • Max flow 1.2m3/s
  • Max throw 18m
  • Running current 1A
  • Max Power 0.18kW

Centrifugal fans

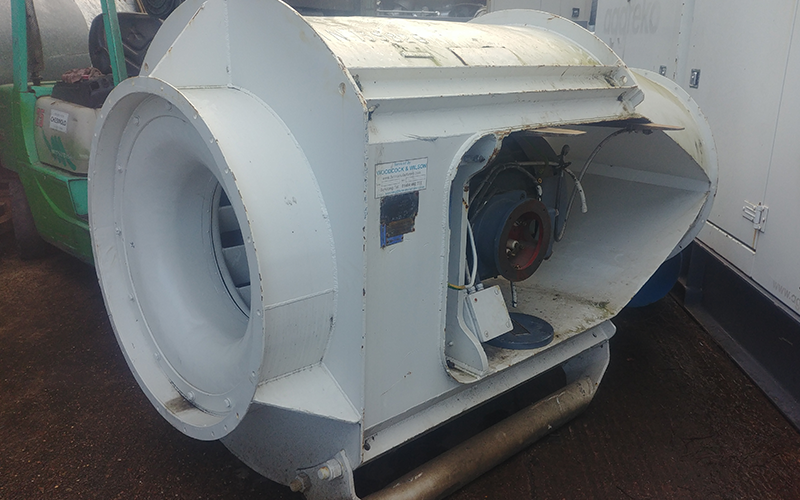

C100

  • Max flow 12.5m3/s
  • Max pressure 7,000Pa
  • Running current 140A
  • Max Power 90kW

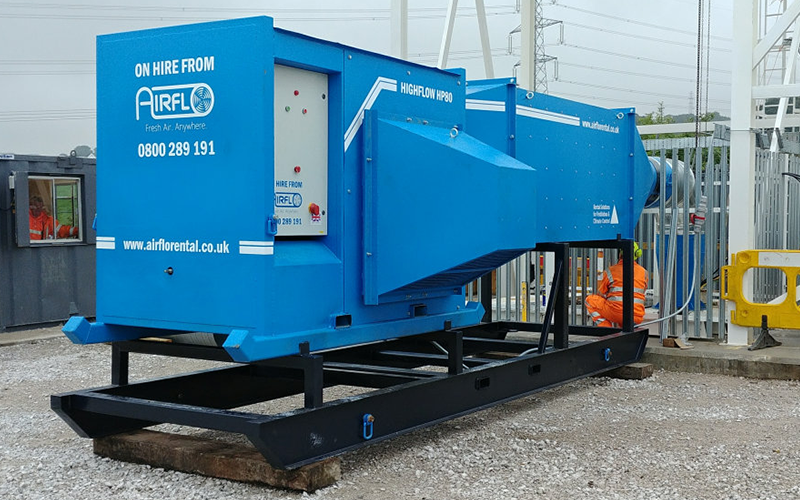

HP80

  • Max flow 12.5m3/s
  • Max pressure 2,500Pa
  • Running current 40A
  • Max Power 22kW

HP50

  • Max flow 5m3/s
  • Max pressure 2,100Pa
  • Running current 10A
  • Max Power 5.5kW

HP35

  • Max flow 1.3m3/s
  • Max pressure 1,950Pa
  • Running current 23A
  • Max Power 2.2kW 110V

Motors and controls

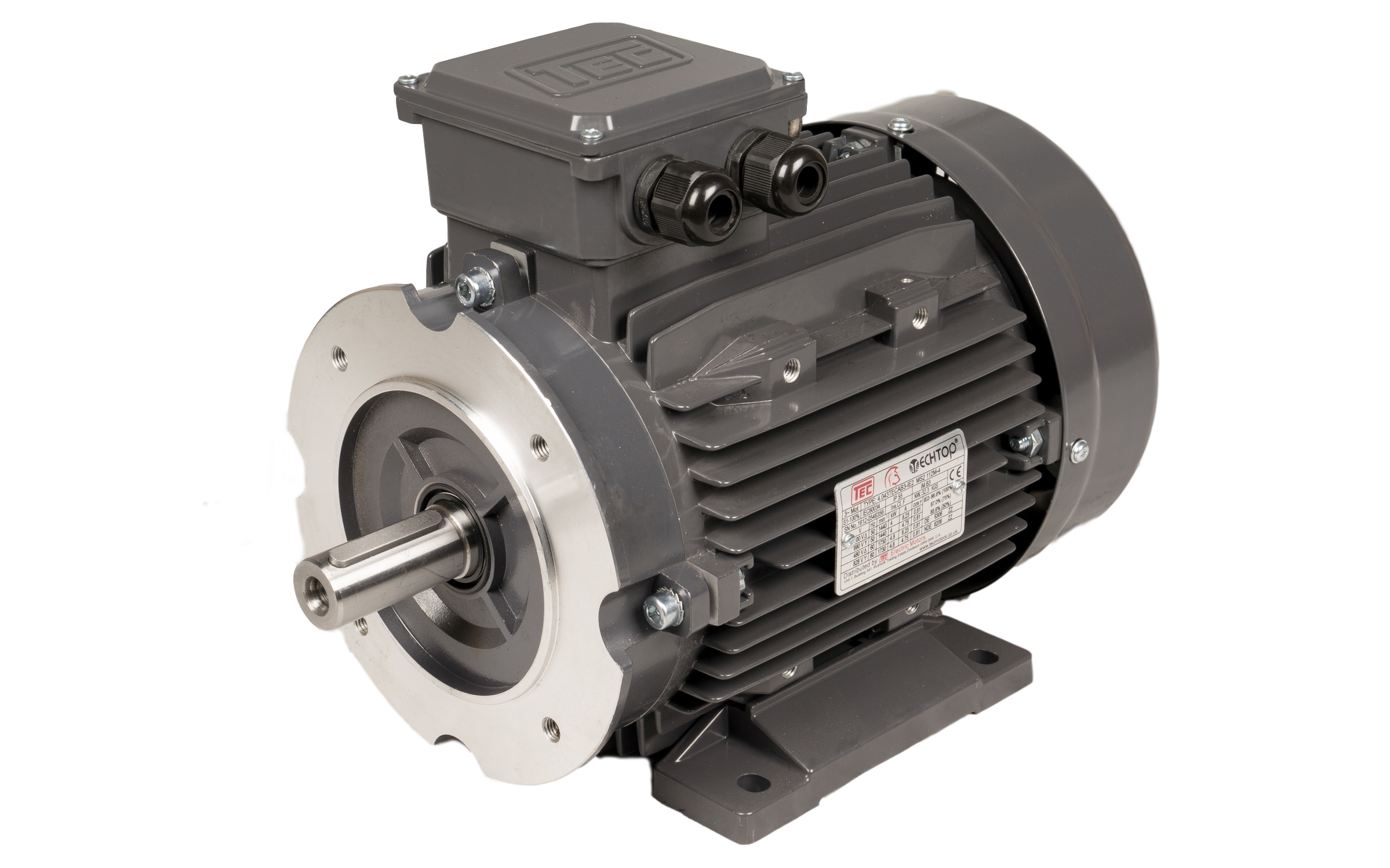

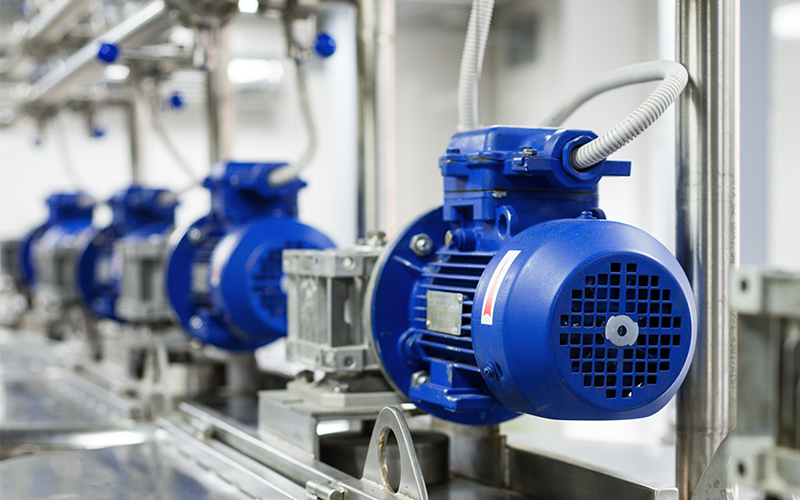

Universal AC Motors - single and three-phase

  • Replacement and OEM motors
  • Repairs and maintenance
  • Fast delivery times
  • Technical support

Universal Inverter drives and starters

  • Replacement and OEM drives
  • Repairs and maintenance
  • Fast delivery times
  • Technical support

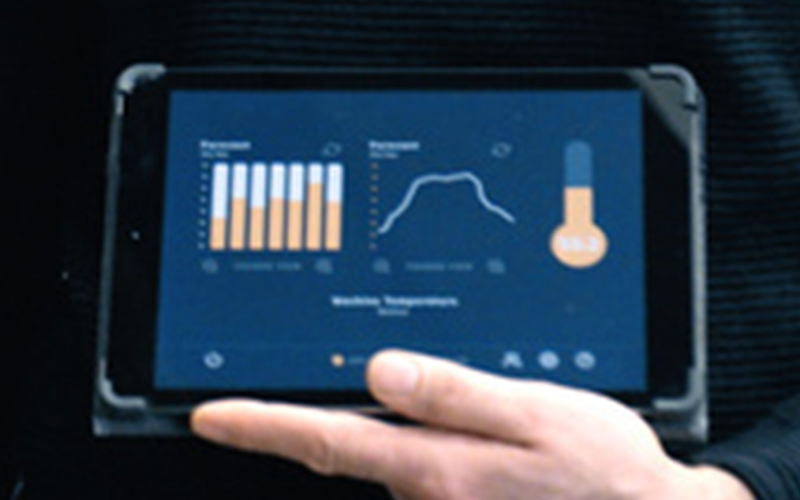

Dynatrack Condition monitoring

  • Real-time motor monitoring
  • Cloud hosted platform
  • Instant remote access
  • Instant alerts and signalling
